How Slab Leak Detection Works in Cerritos Homes

Most Cerritos homeowners discover they have a slab leak the wrong way: the water bill climbs without explanation, the gas bill follows, and eventually a warm spot appears on the floor that no one can account for. By the time a visible symptom forces the conversation, the leak has often been active for weeks or months. Detection equipment changes that dynamic. Acoustic amplification and thermal imaging can locate the failure point in a supply line under concrete before the concrete is opened, before the damage compounds, and before the repair estimate becomes a property damage estimate.

Understanding how detection works helps Cerritos homeowners recognize the early warning signs, run a useful preliminary test themselves, and know what to expect when a plumber arrives with detection equipment.

Why Cerritos slab homes are the right conditions for supply line failure

The premise of a slab leak depends on two things being true at the same time: supply lines running under a concrete foundation, and those lines deteriorating over time. Cerritos has both. The city was developed predominantly between 1962 and 1984 using slab-on-grade construction, which means the copper supply lines , hot and cold , were laid under the concrete before the slab was poured. Those pipes are now 40 to 60 years old.

The failure mechanism is the interaction between hard water and copper over time. Cerritos draws its water supply from three deep wells in the Central Groundwater Basin at approximately 280 to 300 parts per million of dissolved calcium and magnesium, the hard-to-very-hard range. Hard water creates an internal environment inside copper pipe that causes gradual pitting and wall thinning. At the pipe-concrete interface, thermal cycling from the hot water run concentrates that process. After decades, the pipe wall becomes thin enough that supply pressure opens it.

Hot water lines fail first. The temperature differential between a hot water line and the surrounding concrete accelerates the corrosion at the contact zone. This is why the most consistent early warning signs of a Cerritos slab leak, a rising gas bill, a warm floor, a warm water pressure drop , are specifically associated with the hot water system.

The water meter test: what any homeowner can do first

Before calling for professional detection, there is a useful diagnostic test any Cerritos homeowner can run. Close every water fixture in the house: all faucets, the toilets (by shutting their angle stops), the ice maker, the irrigation, the washing machine, and anything else that uses water. Then locate the water meter at the street and observe the dial for 15 minutes.

If the meter moves with all fixtures closed, water is escaping the pressurized supply system somewhere. It does not tell you where, that requires detection equipment, but it confirms the leak exists. If the meter is completely still, the pressurized supply system is intact. Slow drains, gurgling, or sewage odor are drain system issues rather than supply leaks and require a different diagnostic approach.

Document what you observe when you call. Knowing whether the meter is moving, how fast, and what other symptoms are present (warm floor, sound of running water, rising bills) helps the technician prioritize and prepare the right equipment.

Acoustic amplification: how the equipment locates the leak

A pressurized supply line that is failing creates a sound: the pressure differential at the breach point produces a sonic signature that travels through the surrounding material. In a Cerritos slab home, that sound travels upward through the concrete and into the room above. An electronic acoustic amplifier, with a sensitive microphone in the listening probe and filters that isolate the frequency range associated with water under pressure, lets a technician hear and localize that sound from the surface above.

The process involves moving the probe systematically across the floor above the pipe run, listening for the frequency peak that indicates a leak. The pipe run is typically known from the home’s design: supply lines enter from the water heater location in the garage, run under the slab to each fixture, and branch at the points where they turn upward through the concrete. The technician sweeps the area around the expected path, narrows the signal, and marks the floor at the location where the acoustic signature is strongest.

Acoustic detection is most reliable for hot water supply line failures under relatively flat concrete. It is less precise when the concrete is very thick, when there is secondary flooring that deadens the signal, or when there are multiple competing sound sources in the building. In those cases, it is used in combination with other methods.

Thermal imaging: the second tool in the kit

A thermal imaging camera detects temperature differentials at surfaces. A hot water supply line leaking under a slab warms the concrete above the failure point. On a thermal imaging camera, this appears as a warmer zone on the floor surface that does not correspond to any obvious heat source above the slab. The shape of the warm zone , often elongated along the pipe run, with a peak near the failure point , helps confirm the acoustic finding and refine the location.

Thermal imaging is particularly useful for supply line leaks inside walls above the slab, where acoustic detection is more difficult. A pinhole in a copper run inside a bathroom wall may produce no audible signal at the floor but will appear clearly on a thermal camera as a cooler or warmer zone on the wall surface depending on whether it is a cold or hot water line. The two methods complement each other: acoustic detection narrows the location, thermal imaging confirms it.

What happens after the leak is located

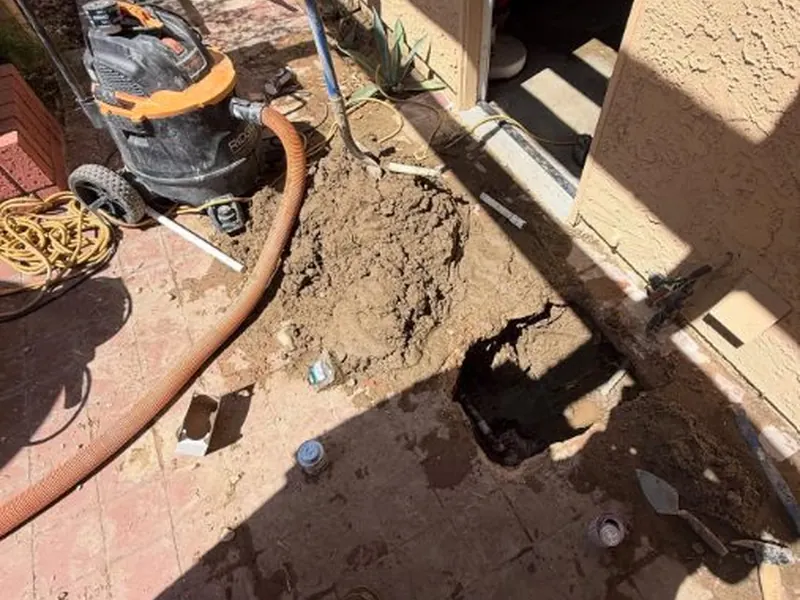

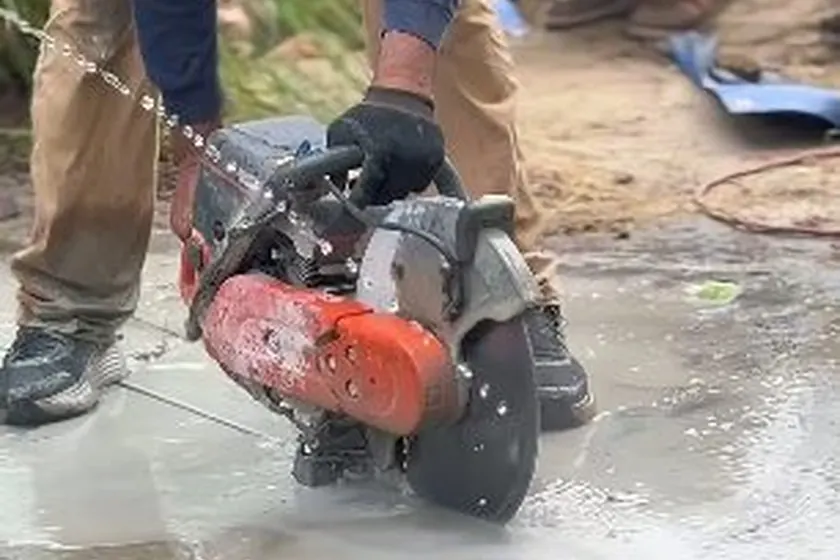

Once the failure point is confirmed, the technician documents the location with photographs and marks the surface. Then repair options and their pricing are presented before any surface is opened. For a Cerritos slab home, the typical options for a supply line failure under concrete are spot repair (opening the slab at the failure point, replacing the failed section, and patching), pipe rerouting above the slab (running a new line through the walls and attic to bypass the failed section without opening concrete), or full repiping (replacing all supply lines above the slab with new PEX-A).

Which option is appropriate depends on the age and condition of the surrounding pipe, the home’s leak history, and the homeowner’s goals for the property. A single isolated failure in otherwise intact copper is often a repair candidate. A home that has had two or more slab leaks in a short period, or where the pipe at the repair site shows widespread corrosion, is a repipe candidate. The detection process gives enough information to have that conversation clearly before any slab work begins.

When to call for detection, and what to say

Call when your water meter moves with all fixtures off. Call when your gas bill rises without an increase in hot water use. Call when a warm spot appears on the floor without a visible source. Do not wait for moisture at a baseboard or bubbling under floor covering; those surface symptoms indicate the leak has progressed enough to saturate the surrounding concrete and soil, adding secondary damage to what is already a pipe failure.

When you call, let the plumber know: whether the meter is moving, what symptoms you’ve observed, the approximate age of the home, and whether there have been prior slab leaks. That context helps the technician arrive with the right equipment configured for the specific situation.

Detection service for a single suspected location in a Cerritos home typically runs $150 to $400. It is almost always credited toward the repair price when we perform the repair on the same project. The cost of not detecting promptly is greater: each week a hot water slab leak runs, it is eroding the concrete around the pipe, saturating the soil below the slab, and adding secondary damage that does not appear on any meter.
